立式单级单吸消防泵

立式单级单吸消防泵

【 流量范围】5～100L/S

【压力范围】0.3～1.6Mpa

【功率范围】7.5～250KW

【口径范围】Φ50～Φ250mm


全国热线

13668785776

产品详情

立式单级单吸消防泵，供输送不含固体颗粒的清水及物理化学性质类似于水的液体之用。主要用于消防系统增压送水，也可用于厂矿给排水。输送液体的流量范围为5～100L/S，压力范围为0.3～1.6Mpa，配套功率范围为7.5～250KW，口径范围为Φ50～Φ250mm。

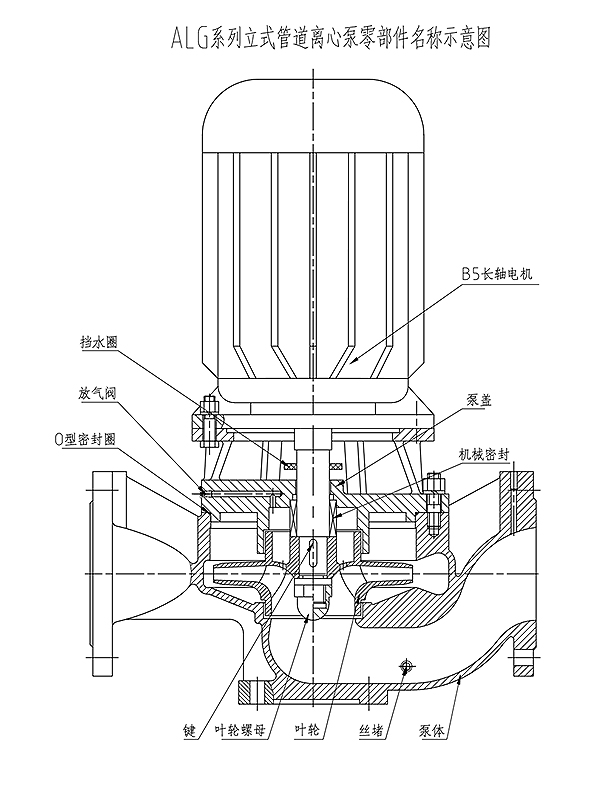

产品结构

产品结构


产品规格

序号消防CCC认证型号额定压力
               MPa		额定流量
               L./S		功率
               KW		转速r/min
1XBD3.2/5G-ALG0.3255.52900
2XBD4.0/5G-ALG0.47.52900
3XBD5.0/5G-ALG0.57.52900
4XBD6.0/5G-ALG0.6112900
5XBD7.0/5G-ALG0.7112900
6XBD8.0/5G-ALG0.8152900
7XBD3.2/10G-ALG0.32107.52900
8XBD4.0/10G-ALG0.4112900
9XBD4.6/10G-ALG0.46112900
10XBD6.0/10G-ALG0.6152900
11XBD7.0/10G-ALG0.718.52900
12XBD8.0/10G-ALG0.8222900
13XBD9.0/10G-ALG0.9302900
14XBD10.0/10G-ALG1302900
15XBD11.0/10G-ALG1.1302900
16XBD12.0/10G-ALG1.2372900
17XBD3.2/15G-ALG0.32157.52900
18XBD4.0/15G-ALG0.4112900
19XBD5.0/15G-ALG0.5152900
20XBD6.0/15G-ALG0.6152900
21XBD7.0/15G-ALG0.718.52900
22XBD8.0/15G-ALG0.8222900
23XBD9.0/15G-ALG0.9302900
24XBD10.3/15G-ALG1302900
25XBD11.0/15G-ALG1.1302900
26XBD12.0/15G-ALG1.2372900
27XBD3.2/20G-ALG0.3220152900
28XBD4.0/20G-ALG0.418.52900
29XBD5.0/20G-ALG0.5222900
30XBD6.0/20G-ALG0.6302900
31XBD7.0/20G-ALG0.7302900
32XBD8.0/20G-ALG0.8372900
33XBD9.0/20G-ALG0.9452900
34XBD10.0/20G-ALG1452900
35XBD11.0/20G-ALG1.1552900
36XBD12.0/20G-ALG1.2752900
37XBD12.9/20G-ALG1.29752900
38XBD14.0/20G-ALG1.4752900
39XBD15.0/20G-ALG1.5902900
40XBD5.0/25G-ALG0.525222900
41XBD6.0/25G-ALG0.6302900
42XBD7.0/25G-ALG0.7302900
43XBD8.0/25G-ALG0.8372900
44XBD9.0/25G-ALG0.9452900
45XBD10.0/25G-ALG1452900
46XBD11.0/25G-ALG1.1552900
47XBD12.0/25G-ALG1.2752900
48XBD13.3/25G-ALG1.33902900
49XBD14.0/25G-ALG1.4902900
50XBD15.0/25G-ALG1.5902900
51XBD3.2/30G-ALG0.3230152900
52XBD4.0/30G-ALG0.418.52900
53XBD5.0/30G-ALG0.5222900
54XBD6.0/30G-ALG0.6302900
55XBD7.0/30G-ALG0.7302900
56XBD8.0/30G-ALG0.8372900
57XBD9.0/30G-ALG0.9452900
58XBD10.0/30G-ALG1452900
59XBD11.0/30G-ALG1.1552900
60XBD12.0/30G-ALG1.2752900
61XBD12.5/30G-ALG1.25902900
62XBD13.2/30G-ALG1.32902900
63XBD14.0/30G-ALG1.4902900
64XBD15.0/30G-ALG1.5902900
65XBD3.2/40G-ALG0.3240222900
66XBD4.0/40G-ALG0.4302900
67XBD4.6/40G-ALG0.46452900
68XBD5.2/40G-ALG0.52372900
69XBD6.0/40G-ALG0.6372900
70XBD7.0/40G-ALG0.7452900
71XBD8.0/40G-ALG0.8552900
72XBD9.0/40G-ALG0.9752900
73XBD10.0/40G-ALG1752900
74XBD11.0/40G-ALG1.1752900
75XBD12.0/40G-ALG1.2902900
76XBD13.0/40G-ALG1.31102900
77XBD14.0/40G-ALG1.41102900
78XBD15.0/40G-ALG1.51102900
79XBD4.0/50G-ALG0.450302900
80XBD5.0/50G-ALG0.5372900
81XBD6.0/50G-ALG0.6452900
82XBD7.0/50G-ALG0.7552900
83XBD8.0/50G-ALG0.8752900
84XBD9.0/50G-ALG0.9902900
85XBD10.0/50G-ALG1902900
86XBD11.0/50G-ALG1.1902900
87XBD12.0/50G-ALG1.21102900
88XBD13.0/50G-ALG1.31102900
89XBD14.0/50G-ALG1.41102900
90XBD15.0/50G-ALG1.51102900
91XBD4.0/60G-ALG0.460452900
92XBD5.0/60G-ALG0.5552900
93XBD5.8/60G-ALG0.58902900
94XBD7.0/60G-ALG0.7902900
95XBD8.0/60G-ALG0.8902900
96XBD9.0/60G-ALG0.9902900
97XBD10.0/60G-ALG1902900
98XBD11.0/60G-ALG1.11102900
99XBD12.0/60G-ALG1.21102900
100XBD3.2/70G-ALG0.3270451480
101XBD4.0/70G-ALG0.40551480
102XBD4.5/70G-ALG0.45551480
103XBD5.0/70G-ALG0.50751480
104XBD5.5/70G-ALG0.55751480
105XBD6.0/70G-ALG0.6751480
106XBD6.5/70G-ALG0.65901480
107XBD7.0/70G-ALG0.70901480
108XBD7.5/70G-ALG0.751101480
109XBD8.0/70G-ALG0.801101480
110XBD8.5/70G-ALG0.851321480
111XBD9.0/70G-ALG0.901321480
112XBD3.2/80G-ALG0.3280551480
113XBD4.0/80G-ALG0.40751480
114XBD4.5/80G-ALG0.45751480
115XBD5.0/80G-ALG0.50751480
116XBD5.5/80G-ALG0.55901480
117XBD6.0/80G-ALG0.60901480
118XBD6.5/80G-ALG0.651101480
119XBD7.0/80G-ALG0.701101480
120XBD7.5/80G-ALG0.751321480
121XBD8.0/80G-ALG0.801321480
122XBD8.5/80G-ALG0.851601480
123XBD9.0/80G-ALG0.901601480
124XBD3.2/90G-ALG0.3290551480
125XBD4.0/90G-ALG0.40751480
126XBD4.2/90G-ALG0.42751480
127XBD4.5/90G-ALG0.45751480
128XBD5.0/90G-ALG0.50751480
129XBD5.5/90G-ALG0.55901480
130XBD6.0/90G-ALG0.60901480
131XBD6.5/90G-ALG0.651101480
132XBD7.0/90G-ALG0.701101480
133XBD7.5/90G-ALG0.751321480
134XBD8.0/90G-ALG0.801321480
135XBD8.5/90G-ALG0.851601480
136XBD9.0/90G-ALG0.901601480
137XBD3.2/100G-ALG0.32100551480
138XBD4.0/100G-ALG0.40751480
139XBD4.5/100G-ALG0.45751480
140XBD5.0/100G-ALG0.50751480
141XBD5.5/100G-ALG0.55901480
142XBD6.0/100G-ALG0.60901480
143XBD6.5/100G-ALG0.651101480
144XBD7.0/100G-ALG0.701101480
145XBD7.5/100G-ALG0.751321480
146XBD8.0/100G-ALG0.801321480
147XBD8.5/100G-ALG0.851601480
148XBD9.0/100G-ALG0.901601480
